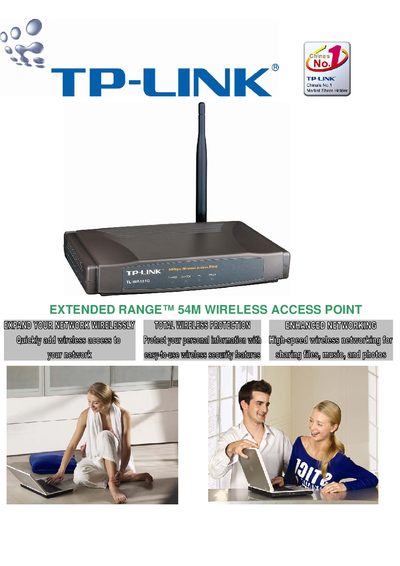

The TL-WA501G is a wireless access point with Extended Range technology, providing high-speed wireless access. It features security functions such as WPA and WEP encryption and is easy to install and use. It is suitable for home or office networks.
This guide explains how to install and configure the TL-WA501G wireless access point. It includes a web‑based setup wizard, an embedded DHCP server, and step‑by‑step instructions for connecting to a home or office network.
The manual also details the device’s technical specifications, security options such as WPA and WEP encryption, antenna types, and operating ranges, helping users achieve reliable high‑speed wireless connectivity.
| Wireless Signal Rates | 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps |
|---|---|
| Frequency Range | 2.4‑2.4835 GHz |
| Wireless Transmit Power | 17 dBm |
| Antenna Type | Omni Directional, Detachable, Reverse SMA |
| Antenna Power | 3 dBm |
| Wireless Operating Range | Indoor up to 200 m, Outdoor up to 830 m |
| Power Consumption | 7.2 W |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Dimensions | 6.2 × 4.3 × 1.3 in. (158 × 110 × 32 mm) |
| Interface | One port Ethernet |
Indoor coverage up to 200 m and outdoor coverage up to 830 m.
