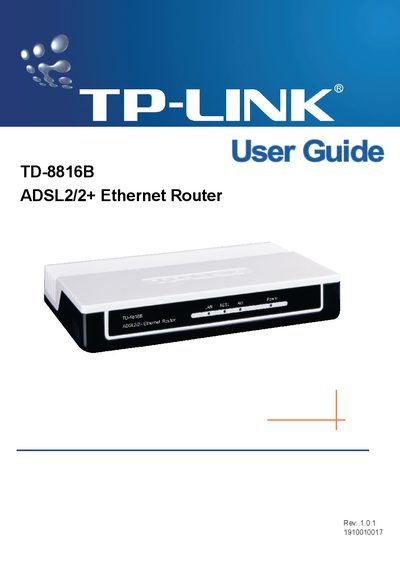

This is a user manual for TD-8816B ADSL2/2+ Ethernet Router
This guide introduces the TD-8816B ADSL2/2+ Ethernet Router, describing its purpose as a simple, cost‑effective solution for ADSL Internet access over a private Ethernet network. It covers hardware installation, including the front and back panels, and provides a quick installation guide for immediate use.
The manual details software configuration through the web‑based utility, covering status, interface setup, advanced features such as QoS, VLAN, firewall, and remote management options like SNMP and DDNS. An appendix lists technical specifications, safety, and regulatory information.
| Supported Standards and Protocols | ANSI 11.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5 |
|---|---|
| LAN Port | 10/100M Auto‑Negotiation RJ45 (Auto MDI/MDIX) |
| WAN Port | 1 RJ11 port |
| Maximum Line Length | 6.5 km |
| Downstream Data Rate | Up to 24 Mbps |
| Upstream Data Rate | Up to 3.5 Mbps (With Annex M enabled) |
| Working Temperature | 0 °C ~ 40 °C |
| Working Humidity | 10 % ~ 90 % RH (non‑condensing) |
| Storage Temperature | -40 °C ~ 70 °C |
| Storage Humidity | 5 % ~ 90 % RH (non‑condensing) |
The router supports downstream speeds up to 24 Mbps and upstream speeds up to 3.5 Mbps when Annex M is enabled.
The device can operate over a telephone line up to 6.5 km in length.
The web interface works with Internet Explorer 5.0 or later, Netscape Navigator 6.0 or later, on Windows 9x/ME/2000/XP/Vista.
