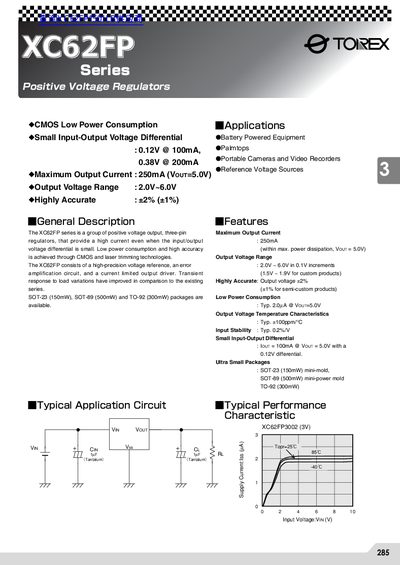

The XC62FP series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The XC62FP consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT-23 (150mW), SOT-89 (500mW) and TO-92 (300mW) packages are available. Maximum Output Current : 250mA (within max. power dissipation, VOUT = 5.0V) Output Voltage Range : 2.0V ~ 6.0V in 0.1V increments (1.5V ~ 1.9V for custom products) Highly Accurate: Output voltage ±2% (±1% for semi-custom products) Low Power Consumption : Typ. 2.0µA @ VOUT=5.0V Output Voltage Temperature Characteristics : Typ. ±100ppm/°C Input Stability : Typ. 0.2%/V Small Input-Output Differential : IOUT = 100mA @ VOUT = 5.0V with a 0.12V differential. Ultra Small Packages : SOT-23 (150mW) mini-mold, SOT-89 (500mW) mini-power mold TO-92 (300mW) GBattery Powered Equipment GPalmtops GPortable Cameras and Video Recorders GReference Voltage Sources NCMOS Low Power Consumption NSmall Input-Output Voltage Differential : 0.12V @ 100mA, 0.38V @ 200mA NMaximum Output Current : 250mA (VOUT=5.0V) NOutput Voltage Range : 2.0V~6.0V NHighly Accurate : ±2% (±1%)
The XC62FP series are three‑pin positive voltage regulators offering up to 250 mA output current with a very small input‑output voltage differential (as low as 0.12 V at 100 mA). They use CMOS and laser‑trimming technology to achieve high accuracy (±2 % typical) and low quiescent current.
Available in ultra‑small SOT‑23, SOT‑89 and TO‑92 packages, the devices are suited for battery‑powered equipment, portable cameras, reference voltage sources and other low‑power applications. The datasheet includes pin assignments, absolute maximum ratings, typical performance curves, and transient response data.
| Output Voltage Range | 2.0 V ~ 6.0 V (0.1 V steps) |
|---|---|
| Maximum Output Current | 250 mA (at Vout = 5.0 V) |
| Typical Accuracy | ±2 % (±1 % for semi‑custom) |
| Input‑Output Differential | 0.12 V @ 100 mA, 0.38 V @ 200 mA |
| Package Options | SOT‑23 (150 mW), SOT‑89 (500 mW), TO‑92 (300 mW) |
| Temperature Coefficient | +100 ppm/°C |
| Input Stability | 0.2 %/V (typical) |
The devices can deliver up to 250 mA of continuous output current (at Vout = 5.0 V).
The series is available in SOT‑23 (150 mW), SOT‑89 (500 mW) and TO‑92 (300 mW) packages.
Typical accuracy is ±2 % of the nominal output, improving to ±1 % for semi‑custom products.
The differential can be as low as 0.12 V when the load current is 100 mA.
