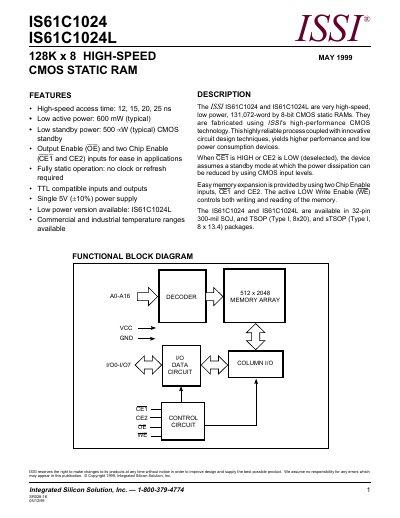

IS61C1024 is a 128K x 8 high-speed CMOS static RAM with high performance and low power consumption.
The IS61C1024 and IS61C1024L are very high‑speed, low‑power static RAM devices offering 131,072 words by 8‑bit organization. They are fabricated with ISSI's high‑performance CMOS technology, providing fast access times and low power consumption. The devices feature dual chip‑enable inputs for easy memory expansion and fully static operation without the need for clock or refresh.
These RAMs are offered in several 32‑pin packages (300‑mil SOJ, TSOP Type I 8×20, and sTSOP Type I 8×13.4) and support both commercial (0 °C to +70 °C) and industrial (‑40 °C to +85 °C) temperature ranges. The datasheet includes absolute maximum ratings, electrical characteristics, timing diagrams for read and write cycles, and ordering information for both standard and low‑power versions.
| Access time | 12‑25 ns |
|---|---|
| Active power consumption | 600 mW (typical) |
| Standby power consumption | 500 mW (typical) |
| Supply voltage | 5 V (‑10 %) |
| Operating temperature range (commercial) | 0 °C to +70 °C |
| Operating temperature range (industrial) | ‑40 °C to +85 °C |
| Package options | 32‑pin 300‑mil SOJ, TSOP (8×20), sTSOP (8×13.4) |
| Input HIGH voltage (min) | 2.2 V |
| Write cycle time | 12‑25 ns |
It is offered in 32‑pin 300‑mil SOJ, TSOP (Type I, 8×20) and sTSOP (Type I, 8×13.4) packages.
Typical active power consumption is 600 mW.
