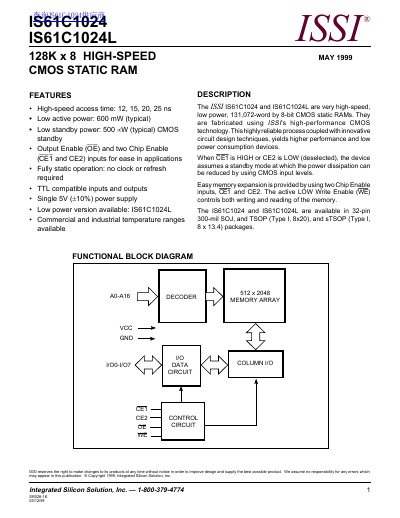

ISSI IS61C1024 IS61C1024L 128K x 8 HIGH-SPEED CMOS STATIC RAM Manual
The IS61C1024 and IS61C1024L are 128 K × 8 high‑speed, low‑power CMOS static RAMs offered by Integrated Silicon Solution (ISSI). They feature fully static operation, two chip‑enable inputs for easy memory expansion, and TTL‑compatible I/O.
This datasheet lists the device’s electrical characteristics, timing parameters, package options, absolute‑maximum ratings and ordering information for both the standard and low‑power versions, covering commercial and industrial temperature ranges.
ISSI IS61C1024 specifications
| Access time | 12‑25 ns |
|---|---|
| Low active power | 600 mW (typical) |
| Supply voltage | 5 V (‑10 %) |
| Commercial temperature range | 0 °C to +70 °C |
| Industrial temperature range | –40 °C to +85 °C |
| Package options | 32‑pin SOJ, TSOP (Type I, 8×20), sTSOP (Type I, 8×13.4) |
| Input capacitance | 5 pF (V_IN = 0 V) |
| Output capacitance | 7 pF (V_OUT = 0 V) |
| Write cycle time | 12‑25 ns |
Source: ISSI IS61C1024 IS61C1024L 128K x 8 HIGH-SPEED CMOS STATIC RAM Manual
All ISSI IS61C1024 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the access time range of the IS61C1024?
The device offers high‑speed access times of 12, 15, 20 or 25 ns.
From: ISSI IS61C1024 IS61C1024L 128K x 8 HIGH-SPEED CMOS STATIC RAM Manual
What supply voltage does the IS61C1024 require?
It operates from a single 5 V supply, allowing a –10 % tolerance.
From: ISSI IS61C1024 IS61C1024L 128K x 8 HIGH-SPEED CMOS STATIC RAM Manual
What package types are available for the IS61C1024?
It is offered in 32‑pin 300‑mil SOJ, TSOP (Type I, 8×20) and sTSOP (Type I, 8×13.4) packages.
What is the typical active power consumption of the IS61C1024?
Typical active power consumption is 600 mW.
