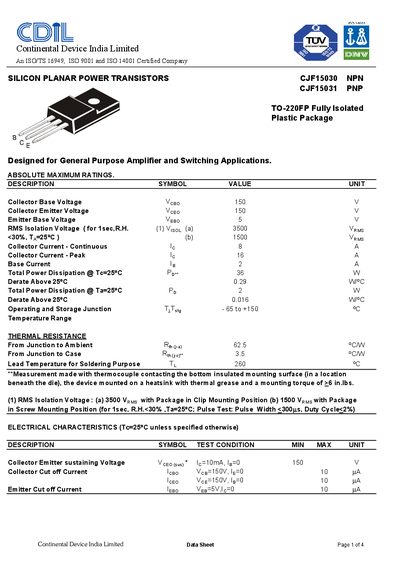

CJF15030 NPN and CJF15031 PNP silicon planar power transistors are designed for general purpose amplifier and switching applications in a TO-220FP fully isolated plastic package.
The CJF15030 (NPN) and CJF15031 (PNP) silicon planar power transistors are offered in a fully isolated TO‑220FP plastic package. They are intended for general‑purpose amplifier and switching applications and feature high voltage and current ratings.
Key sections include absolute maximum ratings, thermal resistance data, electrical and dynamic characteristics, as well as packaging and handling information. The document also contains a disclaimer and contact details for Continental Device India Limited.
| RMS Isolation Voltage (clip mounting) | 3500 Vrms |
|---|---|
| Base‑Emitter On Voltage (VBE(on)) | 1.0 V |
| Current Gain‑Bandwidth Product (fT·hFE) | 30 MHz |
The RMS isolation voltage is 3500 Vrms for clip mounting.
