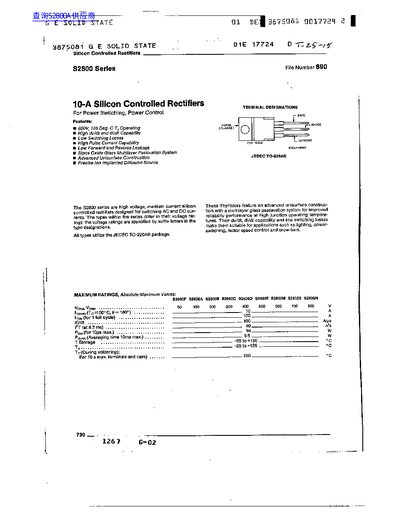

This document provides information about the S2800A supplier and describes the features and characteristics of the product.
The S2800 series are high‑voltage, medium‑current silicon controlled rectifiers designed for switching AC and DC currents in applications such as lighting, motor speed control, and crow‑bars. They feature a multilayer glass passivation system, low switching losses, and high dv/dt and di/dt capabilities.
The devices are supplied in a JEDEC TO‑220AB package and include specifications for maximum ratings, surge current, power dissipation, and temperature limits. Detailed waveforms, gate‑trigger behavior, and holding current characteristics are provided for design engineers.
| Maximum Voltage Rating | 800 V |
|---|---|
| Operating Temperature | 125 °C |
| Package Type | JEDEC TO‑220AB |
| Maximum Surge Current (1 full cycle) | 400 A |
| Power Dissipation (max) | 16 W |
| Storage Temperature Range | 85 °C to +150 °C |
The S2800 series is rated for a maximum voltage of 800 V.
They are supplied in a JEDEC TO‑220AB package.
The devices can handle a surge current of up to 400 A for one full cycle.
The storage temperature range is from 85 °C to +150 °C.
