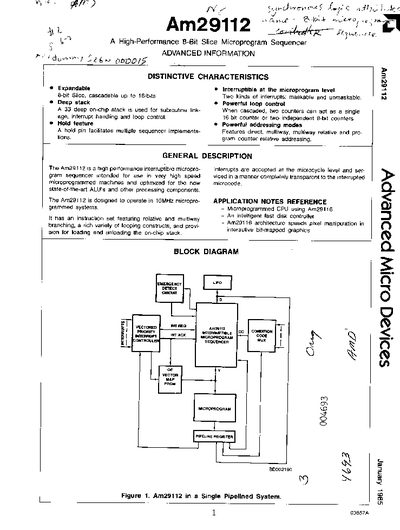

The Am29112 is a high‑performance 8‑bit slice microprogram sequencer designed for use in single‑level pipelined systems. It can be cascaded to form a 16‑bit device and includes features such as maskable and unmaskable interrupts, a 33‑deep on‑chip stack, and a high‑speed adder with full carry look‑ahead across 8 bits.
The document contains a general description, related product listings, detailed pin descriptions, an architecture diagram, the full instruction set with mode controls, and electrical specifications. It also provides contact information for Advanced Micro Devices worldwide.
| Slice width | 8‑bit, cascadable up to 16‑bits |
|---|---|
| On‑chip stack depth | 33 entries |
| Interrupt types | Maskable and unmaskable |
| Package | 48‑pin |
| Adder capability | High‑speed adder with full carry look‑ahead across 8 bits |
The on‑chip stack is 33 deep.
It supports both maskable and unmaskable interrupts.
