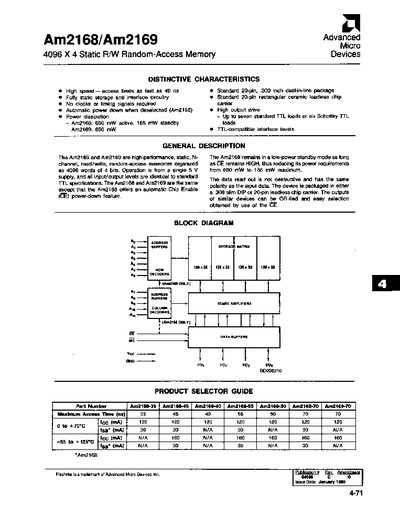

The AMD Am2168 and Am2169 are high‑speed static RAM devices offering 4096 × 4 bits of storage. They operate from a single 5 V supply and feature TTL‑compatible I/O levels, with the Am2168 providing an automatic chip‑enable power‑down mode.
The datasheet details electrical characteristics such as 40 ns access time, power dissipation of 660 mW active (165 mW standby for the Am2168), and operating temperature ranges from –55 °C to +125 °C. Package options include 20‑pin DIP and leadless ceramic carriers, and the document includes pin descriptions, timing diagrams, and typical performance curves.
| Power dissipation (active) | 660 mW |
|---|---|
| Power dissipation (standby, Am2168) | 165 mW |
| Supply voltage range | -0.5 V to +70 V |
| Operating temperature range | -55 °C to +125 °C |
| Die size | 0.123" × 0.2527" |
In active mode the Am2168 dissipates 660 mW.
The devices operate from –55 °C up to +125 °C.
