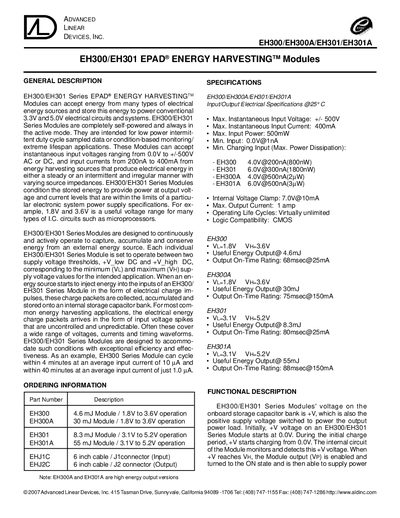

EH300/EH301 Series Modules can accept energy from many types of electrical energy sources and store this energy to power conventional 3.3V and 5.0V electrical circuits and systems.
The EH300/EH300A/EH301/EH301 series are EPAD® energy‑harvesting modules that accept input voltages from 0 V to ±500 V and store energy to power 3.3 V and 5.0 V circuits. They operate continuously, charging an internal capacitor bank and providing up to 1 A output current when the stored voltage is within the configured thresholds.
These modules are RoHS‑compliant, require no user setup, and are shipped ready to use. They include optional input/output pins for external control and are suitable for intermittent, low‑power monitoring applications across a wide temperature range.
| Max. Instantaneous Input Voltage | +/- 500 V |
|---|---|
| Max. Instantaneous Input Current | 400 mA |
| Max Input Power | 500 mW |
| Min. Input Voltage | 0.0 V @ 1 nA |
| Internal Voltage Clamp | 7.0 V @ 10 mA |
| Max. Output Current | 1 A |
| Operating Life Cycles | Virtually unlimited |
| Logic Compatibility | CMOS |
| Outline Dimensions | 0.55 in × 2.00 in × 0.70 in |
| Weight | 0.5 ounce (14 grams) |
| Operating Temperature Range | 0 °C to 70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Humidity | Up to 90 % (no condensation) |
| Protection | Conformal and epoxy coating |
They can accept instantaneous input voltages up to ±500 V.
The modules can supply up to 1 A of output current.
They operate from 0 °C to 70 °C, with storage limits of –40 °C to +85 °C.
