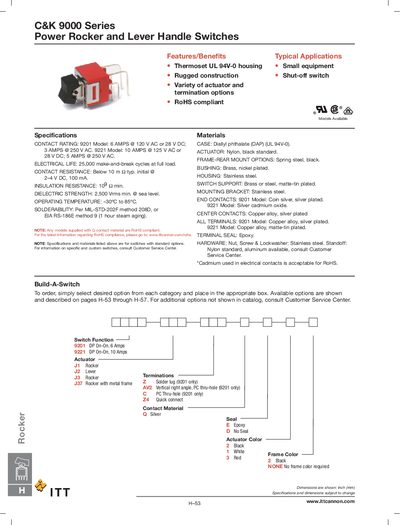

C&K 9000 series power rocker and lever handle switches are available in multiple models. Product features include thermoset UL 94V-0 housing, rugged construction, a variety of actuator and termination options, and RoHS compliance. Typical applications include small equipment and shut-off switches.
The C&K 9000 Series offers power rocker and lever handle switches with thermoset UL 94V‑0 housing, rugged construction, and a range of actuator colors and termination styles. Typical applications include small equipment shut‑off functions and a variety of actuator and termination options.
Technical specifications include contact ratings up to 10 A, 25 000 make‑and‑break cycles, and operating temperatures from –30 °C to 85 °C. Ordering options are provided for actuators, frames, hardware, and RoHS‑compliant contact materials, with detailed part numbers for panel‑mount hardware.
| Contact rating (model 9201) | 6 A @ 120 V AC or 28 V DC; 3 A @ 250 V AC |
|---|---|
| Electrical life | 25,000 make‑and‑break cycles at full load |
| Contact resistance | Below 10 mΩ typ. initial @ 2‑4 V DC, 100 mA |
| Dielectric strength | ≥2,500 Vrms min. @ sea level |
| Operating temperature | -30 °C to 85 °C |
| Solderability | Per MIL‑STD‑202F method 208D or EIA RS‑186E method 9 (1 h steam aging) |
Yes, any models supplied with Q contact material are RoHS compliant.
Actuator colors are offered in black, white, and red.
