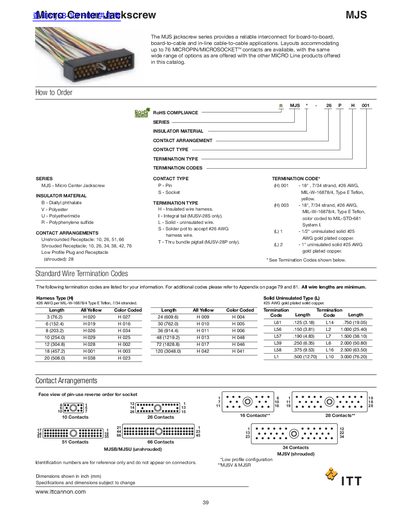

The MJS jackscrew series provides a reliable interconnect for board-to-board, board-to-cable and in-line cable-to-cable applications. Layouts accommodating up to 76 MICROPIN/MICROSOCKETTM contacts are available, with the same wide range of options as are offered with the other MICRO Line products offered in this catalog.
The Micro Center Jackscrew (MJS) series offers reliable interconnects for board‑to‑board, board‑to‑cable and in‑line cable‑to‑cable applications. Layouts can accommodate up to 76 MICROPIN/MICROSOCKET contacts and are available with a wide range of termination options.
The series includes unshrouded and shrouded receptacles, multiple insulator materials (yellow, green, polyester, polyetherimide), and standard finishes such as copper‑alloy pins with 50 µin gold plating. Detailed dimensions and material specifications are provided for each part number.
| Maximum contacts per connector | 76 MICROPIN/MICROSOCKET contacts |
|---|---|
| Insulator material (unshrouded) | Yellow |
| Pin material | Copper alloy, 50 µin gold plating |
| Wire gauge (termination code H) | #26 AWG per MIL‑W‑16878/4 Type E Teflon |
| Termination type H | Insulated wire harness |
The MJS series can be configured with up to 76 MICROPIN/MICROSOCKET contacts in various arrangements.
The unshrouded receptacle uses a yellow insulator material.
Pins are made of copper alloy with a 50 µin gold plating.
The H termination uses #26 AWG wire per MIL‑W‑16878/4 Type E Teflon.
