Key facts
- Brand
- ITT
- Model
- K 9000 Series
- Category
- Other device
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-05
Start here

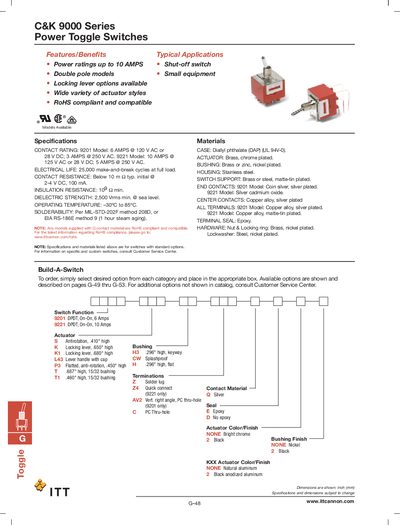

C&K 9000 Series Power Toggle Switches Catalog
This document details the C&K 9000 Series Power Toggle Switches, available in models 9201 (6 Amps) and 9221 (10 Amps). The switches feature double pole configurations with options for locking levers and a wide variety of actuator styles including anti-rotation, lever handles, and splashproof bushings.
Read onlineITT K 9000 Series specifications
| Power Rating (Max) | 10 AMPS |
|---|---|
| Configuration | Double pole models |
| Model 9201 Rating | 6 AMPS @ 120 V AC or 28 V DC; 3 AMPS @ 250 V AC |
| Model 9221 Rating | 10 AMPS @ 125 V AC or 28 V DC; 5 AMPS @ 250 V AC |
| Electrical Life | 25,000 make-and-break cycles at full load |
| Operating Temperature | -30°C to 85°C |
All ITT K 9000 Series documents by type
Questions answered in these manuals
Are these switches RoHS compliant?
Yes, any models supplied with Q contact material are RoHS compliant and compatible.
What is the typical contact resistance?
The contact resistance is below 10 mΩ at typical initial conditions of 2-4 V DC, 100 mA.
Are the C&K 9000 Series switches RoHS compliant?
Yes, any models supplied with Q contact material are RoHS compliant.
From: ITT C&K 9000 Series Power Rocker and Lever Handle Switches Product Leaflet
What actuator colors are available for the switches?
Actuator colors are offered in black, white, and red.
From: ITT C&K 9000 Series Power Rocker and Lever Handle Switches Product Leaflet
