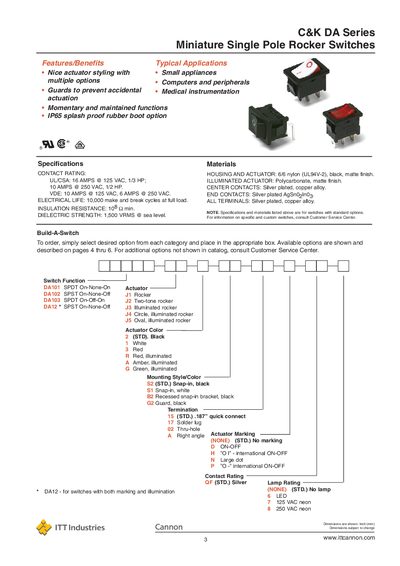

This document describes the features and characteristics of the C&K DA Series Miniature Single Pole Rocker Switches, including multiple options, guards to prevent accidental actuation, momentary and maintained functions, and IP65 splash proof rubber boot option.
The C&K DA Series miniature single pole rocker switches are designed for small appliances, computers, peripherals, and medical instrumentation. The series offers various actuator styles, colors, and illumination options to suit different applications.
The document lists detailed specifications such as contact ratings, electrical life, insulation resistance, and material construction. It also explains the Build‑A‑Switch ordering process, shows dimensional drawings, and includes accessory part numbers.
| Electrical Life | 10,000 make and break cycles at full load |
|---|---|
| Dielectric Strength | 1,500 VRMS @ sea level |
| Housing Material | 6/6 nylon (UL94V‑2), black, matte finish |
| Illuminated Actuator Material | Polycarbonate, matte finish |
They are rated for 10,000 make‑and‑break cycles at full load.
Actuator colors include black, white, red, red illuminated, amber illuminated, and green illuminated.
