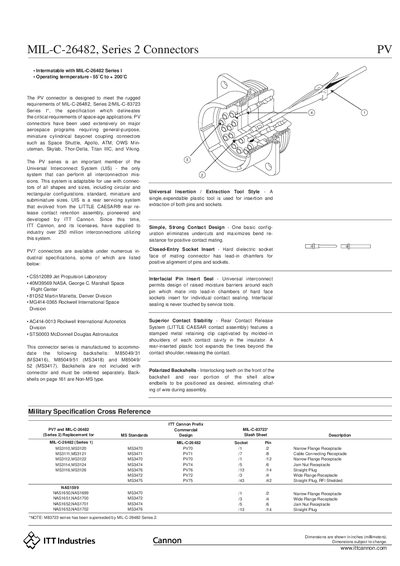

ITT MIL-C-26482 Series 2 Connectors Datasheet

About this manual

The MIL‑C‑26482 Series 2 (PV) connectors are rugged, cylindrical bayonet coupling connectors designed for aerospace and other high‑performance applications. They meet the MIL‑C‑26482 and MIL‑C‑83723 specifications and are used on programs such as the Space Shuttle, Apollo, and Titan rockets.

The document provides material and finish details, electrical performance data, contact arrangements, backshell options, and tooling information, along with ordering instructions and part numbers for the various connector configurations.

What's inside

• Performance and Material Specifications
• Electrical Characteristics
• Contact Arrangements
• Backshell Assemblies
• Tooling and Insertion/Extraction Tools
• Ordering Information
• Dimensions and Panel Cutouts

Specifications

Frequently asked questions

What temperature range can the PV connectors operate in?

The PV connectors operate from –55 °C up to +200 °C.

What material is used for the connector shell?

The shell is made of aluminum alloy.

Which backshell part numbers are compatible with this series?

Compatible backshells are M85049/31 (MS3416), M85049/51 (MS3418) and M85049/52 (MS3417).

What type of tool is used for inserting and extracting pins and sockets?

A single, expendable plastic tool is used for insertion and extraction of both pins and sockets.
