C&K F series pushbutton switches, up to 10 poles, with various contact terminals, mounting and switch ganging configurations, mechanical indicator buttons, illumination options, RoHS compliant.
The F Series pushbutton switches from ITT Cannon offer up to 10 poles per module, various contact terminals, mounting configurations, mechanical indicator buttons, illumination options, and RoHS compliance. Typical applications include audio selection, digital equipment interfaces, and medical equipment interfaces.

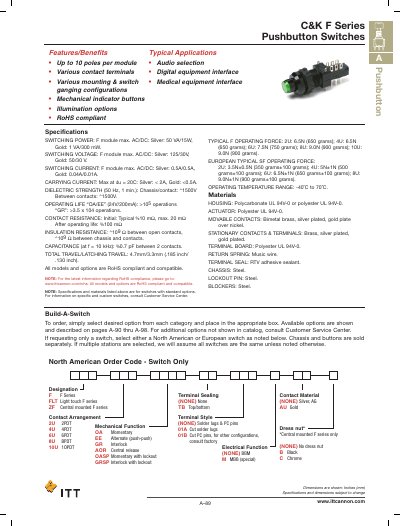

The handbook lists detailed electrical and mechanical specifications such as switching power, voltage, current, dielectric strength, operating life, contact resistance, insulation resistance, capacitance, travel, operating force, temperature range, and material construction. It also includes ordering codes, chassis options, and dimensional drawings for North American and European configurations. This manual is written in Chinese.
| Switching Power (Silver) | 50 V·A / 15 W |
|---|---|
| Switching Voltage (Silver) | 125 V AC / 30 V DC |
| Switching Current (Silver) | 0.5 A AC / 0.5 A DC |
| Carrying Current (Silver) | < 2 A |
| Dielectric Strength | ≥1500 V (chassis/contact and between contacts) |
| Operating Life (OA/EE) | >10⁵ operations |
| Contact Resistance (Initial) | Typical ≤10 mΩ, max 20 mΩ |
| Insulation Resistance | ≥10⁹ Ω (open contacts and chassis) |
| Capacitance (10 kHz) | 0.7 pF between contacts |
| Total Travel / Latching Travel | 4.7 mm / 3.3 mm |
| Typical Operating Force (6U) | 7.5 N (750 grams) |
| Operating Temperature Range | -40 °C to 70 °C |
| Housing Material | Polycarbonate UL 94V-0 or polyester UL 94V-0 |
Yes, all models and options are RoHS compliant and compatible.
The typical operating force for a 6U switch is 7.5 N (750 grams).
