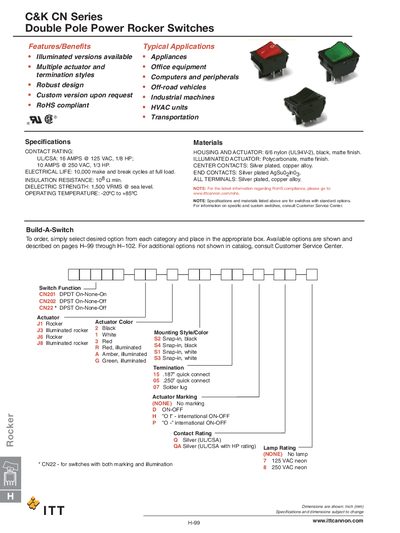

This document provides information about the functionality, specifications, and dimensions of the ITT Cannon H-99 H Rocker Switch. The switch offers multiple options and features, making it suitable for applications such as appliances and office equipment.
The C&K CN Series double pole power rocker switches are designed for a wide range of applications including appliances, office equipment, computers, off‑road vehicles, industrial machines, HVAC units, and transportation. Features include illuminated versions, multiple actuator and termination styles, robust design, custom options, and RoHS compliance.
The leaflet lists detailed electrical specifications such as contact ratings, insulation resistance, dielectric strength, and operating temperature, as well as material information for housings, actuators, and contacts. It also describes ordering options through the Build‑A‑Switch system, actuator colors, mounting styles, and termination types.
| Contact rating (125 VAC) | 16 A @ 125 VAC |
|---|---|
| Contact rating (250 VAC) | 10 A @ 250 VAC |
| Electrical life | 10,000 make and break cycles at full load |
| Insulation resistance | 10^8 Ω min |
| Operating temperature range | -20 °C to +85 °C |
The switches are rated for 10,000 make and break cycles at full load.
They are rated for 16 A at 125 V AC (1/8 HP) and 10 A at 250 V AC (1/3 HP) per UL/CSA.
Yes, they are RoHS compliant; see www.ittcannon.com/rohs for the latest information.
