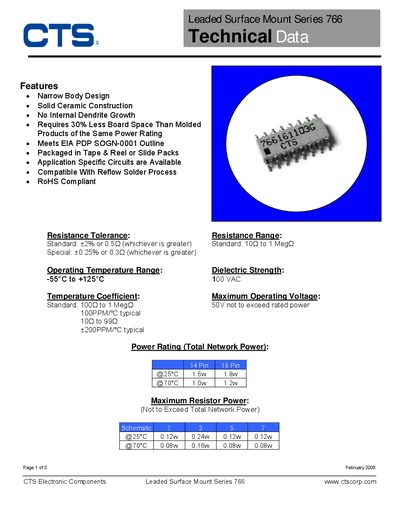

This document describes the features and characteristics of CTS Electronic Components Leaded Surface Mount Series 766, including resistance tolerance, resistance range, operating temperature range, maximum operating voltage, etc.
The CTS Series 766 leaded surface‑mount resistors feature a narrow body design, solid ceramic construction and RoHS compliance. They are compatible with reflow solder processes and offer standard tolerance of ±2% (or 0.50 Ω) with special tighter tolerances available.
The document provides detailed electrical characteristics, packaging options (tape & reel or slide packs), and environmental performance data such as thermal cycling, moisture resistance and mechanical shock specifications.
| Resistance Tolerance (Standard) | ±2% or 0.50 Ω, whichever is greater |
|---|---|
| Operating Temperature Range | -55 °C to +125 °C |
| Maximum Operating Voltage | 50 V (not to exceed rated power) |
| Power Rating @25 °C | 1.6 W |
| Dielectric Strength | 100 VAC |
| Packaging Options | Tape & Reel or Slide Packs |
The resistors operate from –55 °C up to +125 °C.
Yes, the Series 766 resistors are RoHS compliant.
They are available in tape & reel or slide pack formats.
The standard tolerance is ±2% or 0.50 Ω, whichever is greater.
