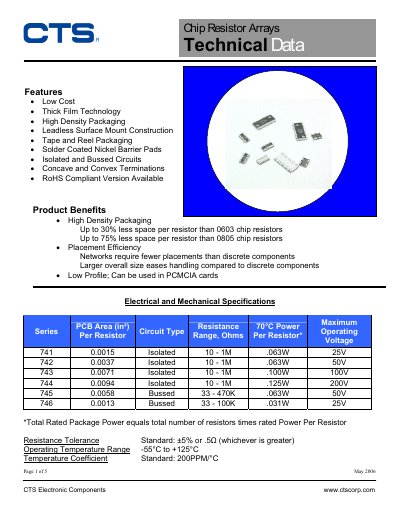

CTS Chip Resistor Arrays Datasheet, introduces the product's technical features, electrical performance, size and other information.
The CTS chip resistor arrays provide high‑density, leadless surface‑mount components in isolated or bussed configurations. They are offered in multiple series (741‑746) with resistance ranges from 10 Ω to 1 MΩ, low profile designs, and RoHS‑compliant versions.
The document includes electrical and mechanical specifications, package outlines, circuit types, performance and environmental specifications, as well as ordering information such as tape‑and‑reel options and resistor coding.
| Temperature Coefficient | 200 PPM/°C |
|---|---|
| Resistance Tolerance | ±5 % or 0.5 Ω (whichever is greater) |
The arrays are supplied in tape and reel packaging.
Yes, a RoHS‑compliant version is available.
The devices operate from –55 °C to +125 °C.
