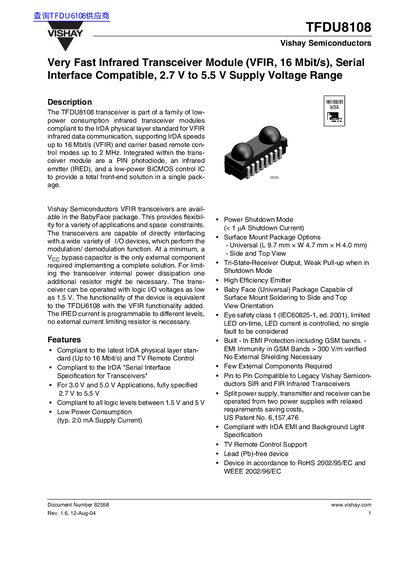

The TFDU8108 transceiver is a low-power consumption infrared transceiver module compliant with the IrDA physical layer standard for VFIR infrared data communication. It supports speeds up to 16 Mbit/s (VFIR) and carrier-based remote control modes up to 2 MHz. The module integrates a PIN photodiode, an infrared emitter (IRED), and a low-power BiCMOS control IC. It is available in the BabyFace package, providing flexibility for various applications and space constraints. The transceiver can directly interface with a wide variety of I/O devices and requires only a VCC bypass capacitor to implement a complete solution.
The TFDU8108 is a VFIR (16 Mbit/s) infrared transceiver module that integrates a PIN photodiode, an infrared emitter (IRED) and a low‑power BiCMOS control IC in a single BabyFace package. It operates from 2.7 V to 5.5 V and requires only a bypass capacitor and, optionally, one resistor for current limiting.
The device complies with the latest IrDA physical‑layer standard, offers a power‑shutdown mode with sub‑µA current, and is RoHS‑compliant and eye‑safety class 1. Typical applications include computers, printers, mobile phones, video equipment, and industrial data‑collection devices.
| Supply voltage range | 2.7 V to 5.5 V |
|---|---|
| Typical supply current (active) | 2.0 mA |
| Maximum IRED operating current | 8 mA |
| RoHS compliance | Yes |
| Eye safety class | Class 1 (IEC60825‑1) |
It operates from 2.7 V up to 5.5 V.
Typical active‑mode current consumption is about 2.0 mA.
Yes, the device is lead‑free and complies with RoHS 2002/95/EC.
It meets eye‑safety class 1 according to IEC 60825‑1.
