The Vishay 0603 SMD LED has an extremely small package size and outstanding brightness, making it suitable for small-scale, high-power products in harsh environments

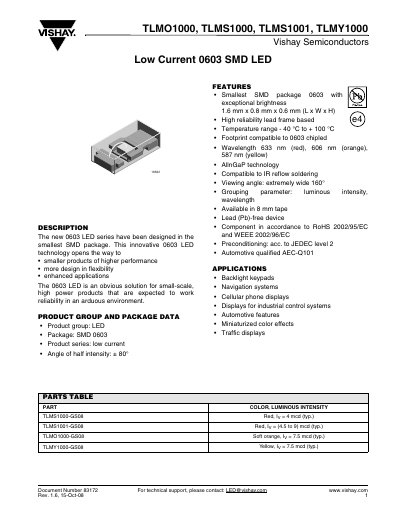

The 0603 low‑current SMD LED series from Vishay offers extremely small package size with high brightness in red, orange, and yellow colors. Designed for applications such as backlight keypads, navigation systems, cellular phone displays, industrial control panels, and automotive features, the LEDs feature a wide 160° viewing angle and are compatible with standard 0603 reflow soldering processes.
The document lists electrical ratings (forward voltage up to 2.6 V, reverse voltage 6 V, power dissipation 40 mW), optical characteristics (wavelengths 633 nm, 606 nm, 587 nm, luminous intensity up to 9 mcd), mechanical dimensions, reel and tape packaging, and recommended storage and handling procedures to avoid moisture absorption.
| Package size | 1.6 mm × 0.8 mm × 0.6 mm (L × W × H) |
|---|---|
| Viewing angle | 160° |
| Wavelength (red) | 633 nm |
| Power dissipation | 40 mW |
| Operating temperature range | -40 °C to +100 °C |
The LEDs have an extremely wide viewing angle of 160°.
Store the reels in a dry box at 10 °C to 30 °C with humidity ≤ 60 % RH; if a dry box is unavailable, keep the temperature between 10 °C and 30 °C and humidity below 60 % RH.
Red (633 nm), orange (606 nm), and yellow (587 nm) LEDs are offered.
