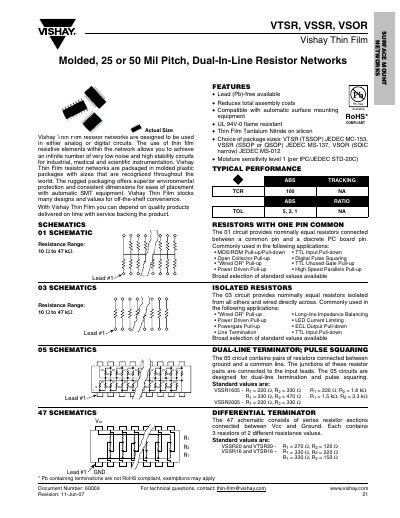

VTSR, VSSR, VSOR Vishay Thin Film resistor networks are designed to be used in either analog or digital circuits.
The Vishay Thin Film VTSR, VSSR and VSOR resistor networks are molded dual‑in‑line devices offered in 25 or 50 mil pitch packages. They are designed for analog and digital circuits in industrial, medical and scientific instrumentation, providing low noise, high stability and a wide resistance range.
The document includes electrical specifications such as resistance range, power rating, temperature limits, and noise performance, as well as mechanical details, packaging options (tape and reel, tubes), and global part number information. A legal disclaimer clarifies usage restrictions and liability.
| Resistance Range | 10 Ω to 47 kΩ |
|---|---|
| Power Rating | 100 mW (Maximum) at +70 °C |
| Operating Temperature Range | -55 °C to +125 °C |
| Storage Temperature Range | -55 °C to +150 °C |
| Noise | < -35 dB |
| Temperature Coefficient (TCR) | Absolute ± 100 ppm/°C |
The networks can dissipate up to 100 mW at +70 °C.
The noise level is specified as less than –35 dB.
