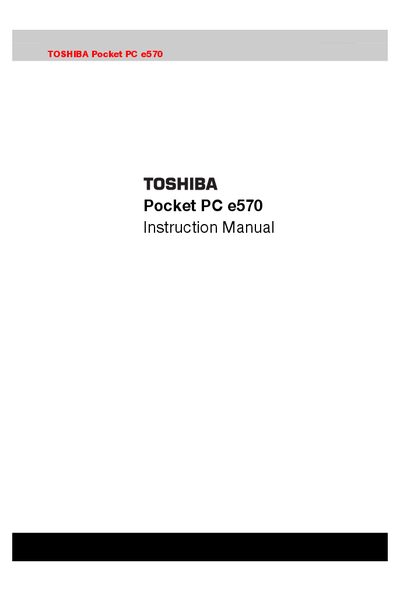

This manual introduces the use of Pocket PC e570, including instructions for use, safety instructions, etc.
This manual introduces the Toshiba e570 Pocket PC, covering important safety instructions, proper handling, and recommended usage practices. It emphasizes data backup, battery safety, and cautions against use in prohibited environments such as aircraft, hospitals, or near metal objects.
The document also lists the device specifications, including dimensions, operating conditions, battery type, processor, memory, display, and available interfaces such as CF/SD card slots, infrared port, and audio jack. Additional information on power supply requirements and optional accessories is provided.
| External dimensions | 77.5 W × 17.5 D × 125 H mm |
|---|---|
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 30 % to 80 % RH |
| Charging temperature | 5 °C to 35 °C |
| Continuous operating time | ≈ 8 hours |
| Memory keeping time | ≈ 30 hours |
| Processor | ARM SA‑1110, 206 MHz |
| Memory | 64 MB SDRAM |
| Display | 240 × 320 px, 65,536 colors TFT |
You must obtain prior consent from an authorized airline representative before using the Pocket PC aboard an aircraft, as airlines may prohibit portable PCs.
The Pocket PC operates between 0 °C and 40 °C with humidity from 30 % to 80 % RH.
