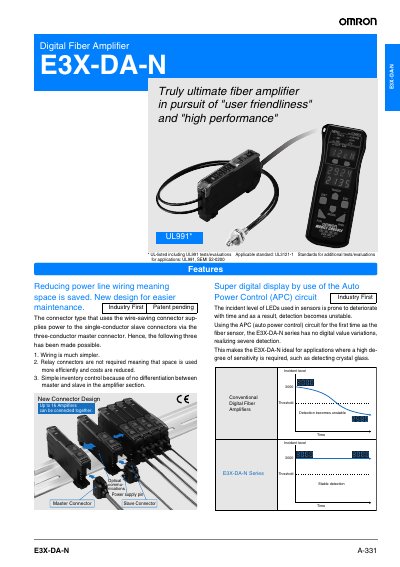

The E3X-DA-N Digital Fiber Amplifier is a high‑performance, user‑friendly fiber sensor designed for precise detection in industrial applications. It reduces wiring complexity, eliminates relay connectors, and supports up to 16 amplifiers in a single system.
This manual covers ordering information, wiring and connector installation, power and performance specifications, operation modes, and troubleshooting. It also includes detailed diagrams, dimension tables, and safety guidelines for proper use and maintenance.
| Power supply voltage | 12 to 24 VDC ±10% |
|---|---|
| Power consumption (normal mode) | 960 mW max. |
| Load current | 50 mA |
| Response time (super‑high‑speed mode) | 0.25 ms |
| Maximum number of amplifiers in a chain | 16 |
Up to 16 amplifiers can be linked in a single system.
The amplifier operates from 12 to 24 VDC with a tolerance of ±10 %.
In normal mode the unit consumes up to 960 mW.
The super‑high‑speed mode provides a response time of 0.25 ms.
