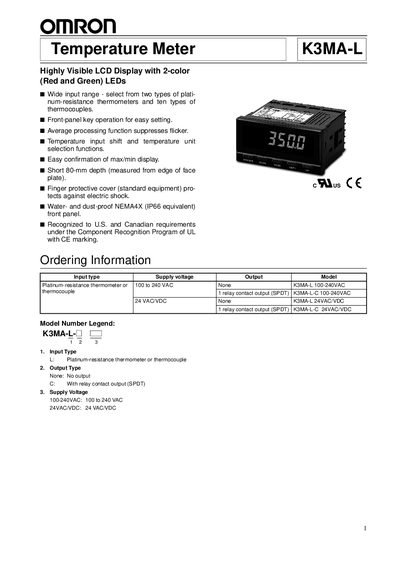

The K3MA-L temperature meter has a wide input range, from two types of platinum resistance thermometers and ten types of thermocouples. Front panel key operation for easy setting. Average processing function suppresses flicker. Temperature input shift and temperature unit selection functions. Easy confirmation of max/min display. Short 80 mm depth (measured from edge of face plate). Finger protective cover (standard equipment) protects against electric shock. Water- and dust-proof NEMA4X (IP66 equivalent) front panel. UL recognized, meets U.S. and Canadian requirements, with CE marking.
The K3MA-L is an industrial‑grade temperature meter with a highly visible LCD, dual‑color LEDs, and a wide input range supporting platinum‑resistance thermometers and ten types of thermocouples. It features front‑panel key operation, average processing to suppress flicker, and a water‑ and dust‑proof NEMA4X front panel.
This manual covers ordering information, electrical specifications, wiring diagrams, operation keys, parameter settings, mounting guidelines, noise‑prevention measures, and troubleshooting steps. Safety precautions, environmental limits, and service‑life recommendations are also detailed to ensure reliable long‑term use.
| Supply voltage | 100 to 240 VAC |
|---|---|
| Dielectric withstand voltage | 2,000 VAC for 1 min |
| Weight | Approx. 200 g |
| Relay contact output | 1 SPDT contact |
| Maximum contact voltage | 400 VAC, 150 VDC |
| Maximum contact current | 5 A (at COM terminal) |
| Switching capacity | 2,000 VA, 192 W |
| Operating humidity range | 25 % to 85 % |
Press the Level Key for 3 seconds; the settings will be restored to the factory defaults.
