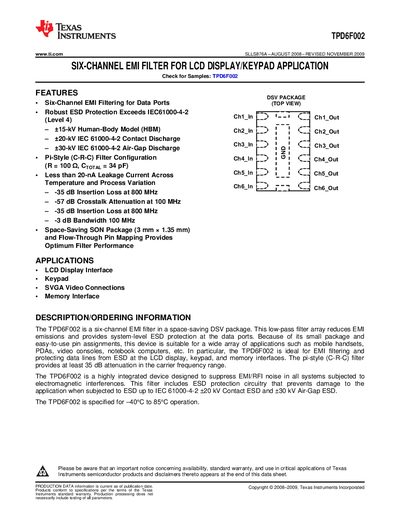

The TPD6F002 is a six-channel EMI filter from Texas Instruments. It is a low-pass filter array that reduces EMI emissions and provides system-level ESD protection at the data ports. This device is suitable for a wide range of applications such as mobile handsets, PDAs, video consoles, notebook computers, etc. In particular, the TPD6F002 is ideal for EMI filtering and protecting data lines from ESD at the LCD display, keypad, and memory.
The TPD6F002 provides six independent low‑pass filter channels in a space‑saving 3 mm × 1.35 mm SON DSV package. Each channel delivers at least –35 dB insertion loss at 800 MHz and –57 dB crosstalk attenuation at 100 MHz, with a 3 dB bandwidth of 100 MHz.
The device includes extensive ESD protection (5 kV HBM, +20 kV contact discharge, +30 kV air‑gap discharge) and operates from –40 °C to 85 °C. Ordering information, package drawings and land‑pattern guidelines are provided for PCB designers.
| Operating temperature range | -40 °C to 85 °C |
|---|---|
| Package dimensions | 3 mm × 1.35 mm |
| Pitch | 0.5 mm |
| Insertion loss (800 MHz) | -35 dB |
| Crosstalk attenuation (100 MHz) | -57 dB |
| 3 dB bandwidth | 100 MHz |
| Channel leakage current | <20 nA |
| HBM ESD rating | 5 kV |
| Contact discharge ESD rating | +20 kV |
| Air‑gap discharge ESD rating | +30 kV |
| Resistance (typical) | 100 Ω |
| Storage temperature range | -65 °C to 150 °C |
| Maximum junction temperature | 150 °C |
| Maximum lead (soldering) temperature | 300 °C |
The device operates from –40 °C to 85 °C.
It offers 5 kV HBM, +20 kV IEC 61000‑4‑2 contact discharge, and +30 kV IEC 61000‑4‑2 air‑gap discharge protection.
The typical insertion loss is –35 dB at 800 MHz.
