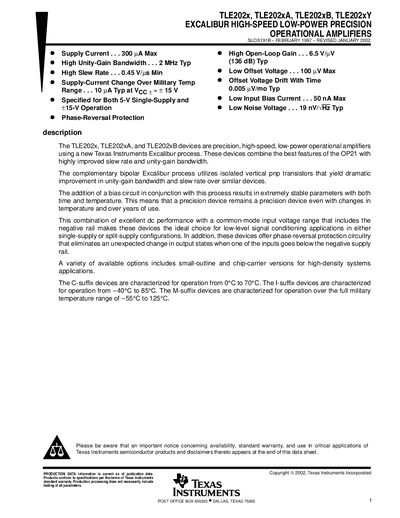

The TLE202x, TLE202xA, and TLE202xB devices are precision, high-speed, low-power operational amplifiers using a new Texas Instruments Excalibur process. These devices combine the best features of the OP21 with highly improved slew rate and unity-gain bandwidth. The complementary bipolar Excalibur process utilizes isolated vertical pnp transistors that yield dramatic improvement in unity-gain bandwidth and slew rate over similar devices. The addition of a bias circuit in conjunction with this process results in extremely stable parameters with both time and temperature. This means that a precision device remains a precision device even with changes in temperature and over years of use. This combination of excellent dc performance with a common-mode input voltage range...
The TLE202x, TLE202xA, TLE202xB, and TLE202xY devices are high‑speed, low‑power precision operational amplifiers built on Texas Instruments' Excalibur process. They offer improved slew rate, unity‑gain bandwidth, and phase‑reversal protection, making them suitable for low‑level signal‑conditioning applications in both single‑supply and split‑supply configurations.
The datasheet lists the available package options (chip, ceramic DIP, plastic DIP, and various small‑outline carriers such as D, DB, JG, P, PW), mechanical dimensions, absolute maximum ratings, recommended operating conditions, and power‑dissipation tables for the different suffix families (C, I, M). An important notice and warranty information conclude the document.
| Unity‑gain bandwidth | 2 MHz typ |
|---|---|
| Slew rate | 0.45 V/µs min |
| Supply current | 300 µA max |
| Input bias current | 50 nA max |
The typical unity‑gain bandwidth is 2 MHz.
