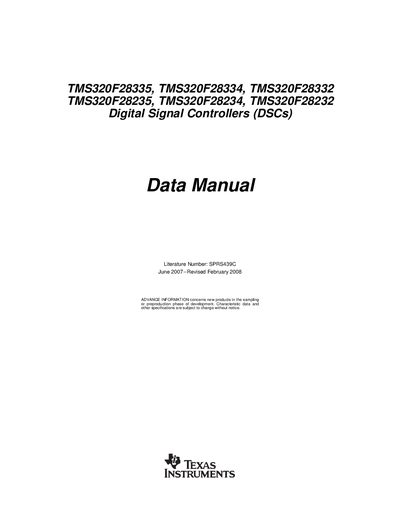

TEXAS INSTRUMENTS TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234 TMS320F28232 Data Manual

About this manual

This data manual provides detailed information on the TMS320F28335, TMS320F28334, TMS320F28332, TMS320F28235, TMS320F28234, and TMS320F28232 digital signal controllers. It includes feature descriptions, pin assignments, functional overviews, memory architecture, peripheral modules, and timing diagrams.

The document also contains electrical specifications, power‑sequencing guidelines, thermal‑mechanical data, and mechanical drawing dimensions for the 176‑pin PGF (S‑PQFP‑G176) package. Revision history shows the original release in June 2007 and a revision in February 2008.

What's inside

• Features
• Getting Started
• Pin Assignments
• Signal Descriptions
• Functional Overview
• Memory Map
• Peripheral Overview
• Electrical Specifications
• Thermal‑Mechanical Data
• Mechanical Data

Specifications

Frequently asked questions

What is the literature number for this manual?

The literature number is SPRS439C.

When was the manual last revised?

The manual was revised in February 2008.

What package does the TMS320F28335 use?

It uses a 176‑pin PGF (S‑PQFP‑G176) plastic quad flat‑pack.
