This data sheet describes the features and characteristics of the TLE208x series JFET-input operational amplifiers, including bandwidth, input impedance, output drive capability, etc.

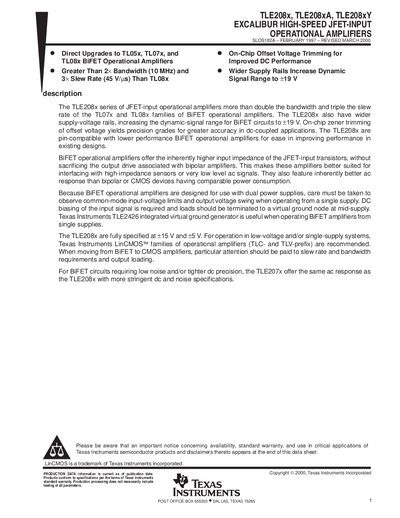

The TLE208x family (including TLE2081, TLE2082, and TLE2084 variants) offers high‑speed JFET‑input operational amplifiers that double the bandwidth and triple the slew rate of previous BiFET families. They feature wider supply‑voltage rails (up to ±19 V) and on‑chip offset‑voltage trimming for precision applications, while remaining pin‑compatible with lower‑performance BiFET amplifiers.
The datasheet provides detailed electrical specifications, package options (D, FK, DW, J, etc.), mechanical dimensions, absolute maximum ratings, and recommended operating conditions. It also includes a mechanical drawing of the plastic dual‑in‑line package and an important notice regarding product availability and warranty.
| Maximum power dissipation (FK package, 25 °C) | 1375 mW |
|---|---|
| Pin compatibility | Pin‑compatible with lower‑performance BiFET amplifiers |
Yes, the TLE208x series is pin‑compatible with lower‑performance BiFET operational amplifiers.
