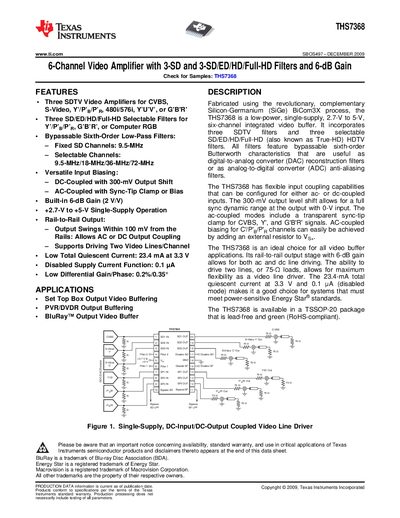

The THS7368 is a low-power, single-supply, 6-channel integrated video buffer fabricated using the revolutionary, complementary Silicon-Germanium (SiGe) BiCom3X process. It incorporates 3 SDTV filters and 3 selectable SD/ED/HD/Full-HD (also known as True-HD) HDTV filters. All filters feature bypassable sixth-order Butterworth characteristics that are useful as digital-to-analog converter (DAC) reconstruction filters or as analog-to-digital converter (ADC) anti-aliasing filters.
The THS7368 video amplifier integrates three SDTV filters and three selectable SD/ED/HD/Full‑HD filters, each with bypassable sixth‑order Butterworth characteristics. It supports both AC‑ and DC‑coupled inputs, provides a 6‑dB gain, and can drive two video lines with low quiescent current, making it suitable for set‑top boxes, PVR/DVR, and Blu‑Ray output buffering.
The device is supplied in a lead‑free, RoHS‑compliant TSSOP‑20 package and operates from a single 2.6 V to 5.5 V supply. Detailed electrical characteristics, absolute maximum ratings, and recommended operating conditions are provided for designers.
| Supply voltage (Vs) range | 2.6 V – 5.5 V |
|---|---|
| Output current (Io) | +90 mA |
| Total quiescent current (3.3 V) | 23.4 mA |
| Maximum junction temperature (any condition) | 150 °C |
| Input voltage range | -0.4 V to Vs |
| Package type | TSSOP‑20 |
The THS7368 operates from 2.6 V up to 5.5 V.
It draws 23.4 mA of quiescent current at a 3.3 V supply.
The device is supplied in a TSSOP‑20 surface‑mount package.
The maximum output current is +90 mA.
