The TPS28xx series of single-channel high-performance MOSFET drivers have a power voltage range of 4V to 14V, a peak current of 2A, and an internal adjustable voltage range of 40V. The SOT-23 package can be operated in an ambient temperature range of -40°C to 125°C.

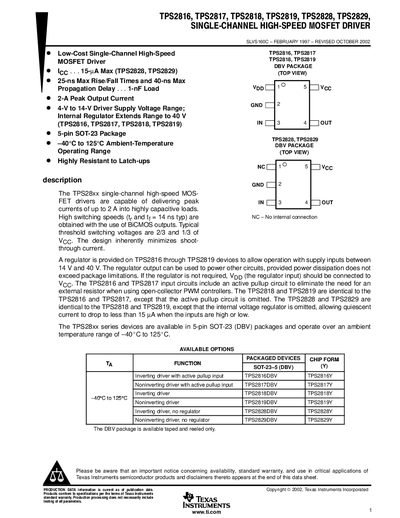

The TPS28xx family comprises six single‑channel high‑speed MOSFET driver devices (TPS2816, TPS2817, TPS2818, TPS2819, TPS2828, TPS2829). They deliver up to 2 A peak output current into capacitive loads and operate from a 4 V to 14 V driver supply, with an internal regulator extending the range to 40 V for the regulator‑enabled parts. The devices are offered in a 5‑pin SOT‑23 (DBV) package and are rated for an ambient temperature range of –40 °C to 125 °C.
Key electrical parameters include rise/fall times as low as 25 ns, propagation delays of 24‑45 ns, and a continuous regulator output current of up to 20 mA. The datasheet also provides dissipation ratings, pin functions, and recommended operating conditions for each device in the series.
| Peak Output Current | 2 A |
|---|---|
| Driver Supply Voltage Range | 4 V to 14 V |
The drivers can deliver up to 2 A peak output current.
The driver supply voltage range is 4 V to 14 V, with an internal regulator extending it to 40 V for regulator‑enabled parts.
