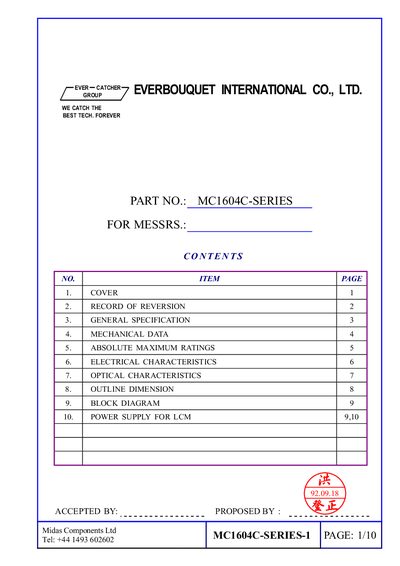

Everbouquet MC1604C Series Manual
This manual details the technical specifications of the Everbouquet MC1604C Series LCD module, including mechanical dimensions, electrical ratings, and optical performance. It also contains a block diagram, pin connections, and power supply information for both the logic and backlight circuits.
Key data include a 16‑character by 4‑line display, module size of 72 mm × 48 mm, viewing angles up to 30°, contrast ratios up to K = 25, and recommended power supplies ranging from 0 V to 6 V for logic and 115 Vrms for backlight.
EVERBOUQUET MC1604C-SERIES specifications
| Number of characters | 16 CH × 4 LINE |
|---|---|
| Module size | 61.8 mm W × 25.2 mm H |
| Dot size | 0.56 mm W × 0.56 mm H |
| Power supply for logic | 0 V to 6.0 V |
| Input voltage (VRP) | 2.20 V |
| Viewing angle (typical) | 20°–30° |
| Contrast ratio (typical) | 2.0–3.0 |
All EVERBOUQUET MC1604C-SERIES documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the mechanical dimensions of the MC1604C module?
The module measures 61.8 mm wide by 25.2 mm high.
What is the normal operating temperature range?
The module operates normally from 0 °C to 50 °C.
What is the maximum input voltage for the logic supply?
The power supply for logic Vpp‑Vss can be up to 6.0 V.
What are the mechanical dimensions of the MC1604C module?
The module measures 72.0 mm wide by 48.0 mm high.
