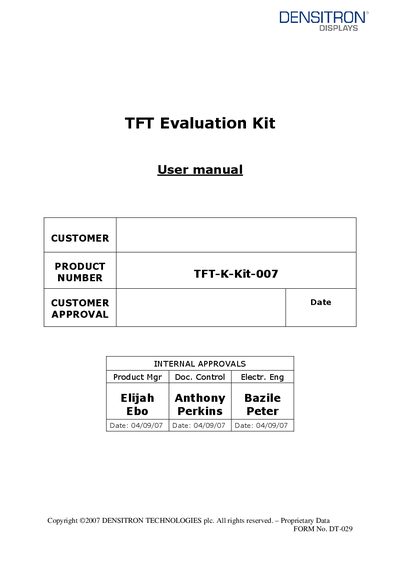

Densitron Kyocera TFT evaluation kit User manual
This manual provides step‑by‑step instructions for assembling the Densitron TFT‑K‑Kit‑007 evaluation kit, which includes a 5.7" Kyocera TFT panel, driver card, power supply, DC‑DC converter and a 33‑way FFC cable. It also lists the kit contents and safety precautions for handling the components in a static‑free environment.
Detailed electrical and mechanical specifications of the TFT panel and driver card are given, along with pin‑out tables, jumper settings, and guidance for connecting VGA or DVI sources. Technical support contact information is provided at the end of the document.
| TFT panel size | 5.7 inches |
|---|---|
| Resolution | 320 × 240 dots |
| Dimensions | 144.0 × 104.8 × 13.0 mm |
| Effective viewing area | 117.2 × 88.4 mm |
| Dot pitch | 0.12 × 0.36 mm |
| Power input voltage (VDD) | 3.0 V – 3.6 V (typ 3.3 V) |
| Input signal voltage (Low, VIL) | 0 – 0.3 VDD |
| Input signal voltage (High, VIH) | 0.7 VDD – +5.5 V |
| Current consumption (IDD) | 130 mA typ, 160 mA max |
The kit operates with a VDD supply between 3.0 V and 3.6 V, typically 3.3 V.
Contact Densitron by email at [email protected] or visit their website at www.densitron.co.uk.
