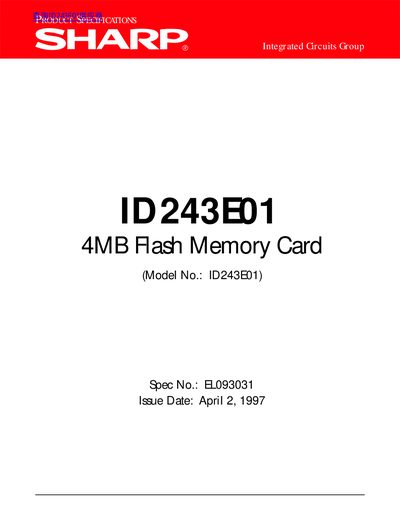

ID243E01 4MB Flash Memory Card (Model No.: ID243E01) is a product of ETox, and it is a flash memory card that complies with PCMCIA Rel. 2.0 standard.
The ID243E01 is a 4 MB flash memory PC Card designed for use in office electronics, instrumentation, machine tools, audiovisual equipment, home appliances, and communication devices. The document outlines application areas, safety precautions, and restrictions for high‑reliability or high‑performance equipment.
Key specifications include a 4 M‑byte memory capacity, 5.0 V ±5% or 3.3 V–4.3 V supply voltage, 64 K‑word erase blocks, up to 100 000 program/erase cycles per block, and a parallel I/O interface. Physical dimensions are 54.0 × 85.6 × 3.3 mm, weight 30 g, and the card conforms to PCMCIA Rev. 2.0 standards. Pin functions such as WP (write protect) and Vcc are described in detail.
| Memory Capacity | 4 MByte (4M words × 8 bits) |
|---|---|
| Supply Voltage | 5.0 V ±5% or 3.3 V–4.3 V |
| Erase Unit | 64 K word blocks |
| Program/Erase Cycles | 100,000 cycles per block |
| Interface | Parallel I/O Interface |
| External Dimensions | 54.0 mm × 85.6 mm × 3.3 mm |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | -20 °C to 65 °C |
| Connector Type | PCMCIA Rev. 2.0 Card Use Connector |
The card operates at 5.0 V ±5% or between 3.3 V and 4.3 V.
It supports up to 100,000 program/erase cycles per block.
The card measures 54.0 mm × 85.6 mm × 3.3 mm.
The WP pin is the write‑protect output; it is high when the card is write‑protected.
