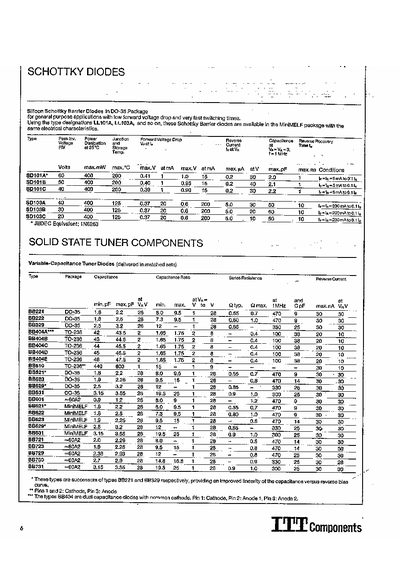

The document lists the electrical characteristics of various ITT Schottky barrier diodes, including peak inverse power, forward voltage drop, reverse capacitance and recovery times. It also includes a series of variable‑capacitance tuner diodes with their capacitance ranges and series resistance.
Package outlines for the diodes are given, showing dimensions and typical weights for TO‑92, TO‑13, glass, metal and MiniMELF packages. These details help designers select the appropriate package for their application.
| Peak Inverse Power (SD1I01A) | 60 W |
|---|---|
| Capacitance range (BB22t tuner diode) | 1.8 – 2.2 pF |
| TO‑92 package weight | 0.18 g |
| DO‑13 metal case weight | 1.49 g |
The SD1I01A diode is rated for a peak inverse power of 60 W.
The BB22t tuner diode has a capacitance ranging from 1.8 pF to 2.2 pF.
