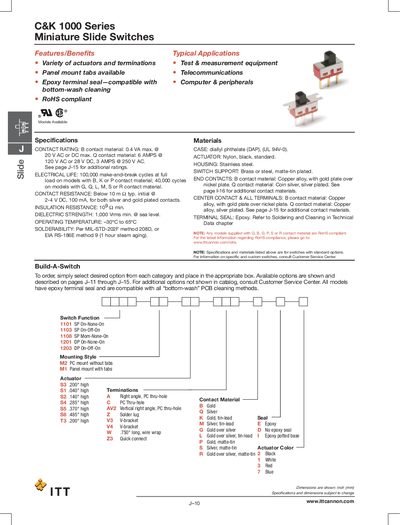

This document describes the features and benefits of the J Slide C&K 1000 Series Miniature Slide Switches, including a variety of actuators and terminations, panel mount tabs available, epoxy terminal seal compatible with bottom-wash cleaning, and RoHS compliance. Typical applications include test and measurement equipment, telecommunications, and computer and peripherals.
The C&K 1000 Series miniature slide switches from ITT Cannon are designed for test & measurement, telecommunications, and computer peripherals. They offer a variety of actuators, terminations, and mounting styles, with epoxy terminal seals compatible with bottom‑wash PCB cleaning.
Key specifications include contact ratings up to 20 VAC/DC for B contacts, electrical life of up to 100,000 cycles, insulation resistance of 10^9 Ω, and operation from –30 °C to 65 °C. Materials such as a DAP case, stainless‑steel housing, and gold‑plated contacts ensure durability and RoHS compliance.
| Contact rating (B material) | 0.4 VA max @ 20 VAC or DC |
|---|---|
| Contact rating (Q material) | 6 AMPS @ 120 V AC or 28 V DC, 3 AMPS @ 250 V AC |
| Electrical life (B, K, P contacts) | 100,000 make‑and‑break cycles at full load |
| Electrical life (other contacts) | 40,000 cycles |
| Contact resistance | Below 10 mΩ typical |
| Insulation resistance | ≥10^9 Ω |
| Dielectric strength | 1,000 Vrms min. at sea level |
| Operating temperature | -30 °C to 65 °C |
| Solderability | Meets MIL‑STD‑202F method 208D / EIA RS‑186E method 9 |
| Case material | Diallyl phthalate (DAP), UL 94V‑0 |
| Housing material | Stainless steel |
| Terminal seal | Epoxy |
The B contact material is rated for up to 0.4 VA at a maximum of 20 VAC or DC.
Yes, models supplied with Q, B, G, P, S or R contact material are RoHS compliant.
They are rated for 100,000 make‑and‑break cycles at full load.
Both M2 PC mounting without tabs and M1 panel mounting with tabs are offered.
