The IR2151 is a high voltage, high speed, self-oscillating power MOSFET and IGBT driver with both high and low side referenced output channels. It features a floating channel, undervoltage lockout, and programmable oscillator frequency.
The IR2151 driver provides separate high‑side and low‑side referenced output channels for MOSFET or IGBT switching up to 600 V. It features a floating channel for bootstrap operation, programmable oscillator frequency, matched propagation delays, and built‑in dead‑time control to minimise cross‑conduction.

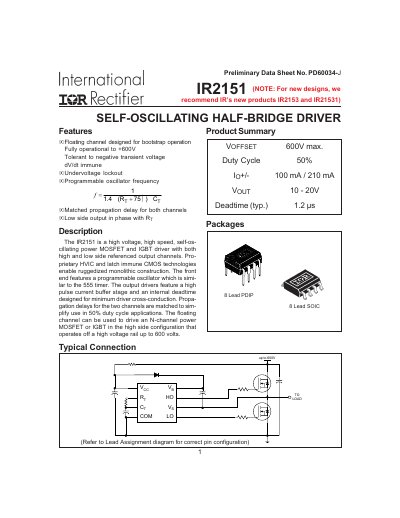

The device is supplied in 8‑lead DIP and SOIC packages, supports a duty cycle of 50 % and includes protection features such as undervoltage lockout and dV/dt immunity. Electrical characteristics, pin assignments and timing diagrams are detailed in the datasheet.
| Maximum Supply Voltage (VOFFSET) | 600 V |
|---|---|
| Typical Duty Cycle | 50 % |
| Output Current (IO+ / IO‑) | 100 mA / 210 mA |
| Output Voltage Range (VOUT) | 10 V – 20 V |
| Typical Deadtime | 1.2 µs |
| Package Types | 8‑lead DIP, 8‑lead SOIC |
| Power Dissipation (DIP) | 1.0 W |
The IR2151 is rated for up to 600 V on its high‑side floating supply.
Typical dead‑time is 1.2 µs, with a range from 0.5 µs to 2.25 µs.
The device is offered in 8‑lead DIP and 8‑lead SOIC packages.
The recommended duty cycle is 50 % for optimal operation.
