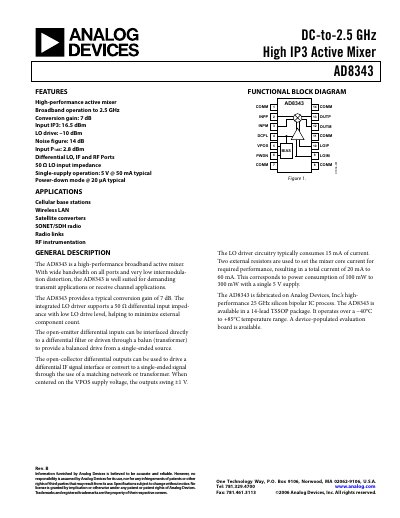

AD8343 is a high-performance broadband active mixer with wide bandwidth on all ports and very low intermodulation distortion, well suited for demanding transmit applications or complex receiver applications.
The AD8343 is a high‑performance broadband active mixer covering DC to 2.5 GHz. It offers a typical conversion gain of 7 dB, low LO drive (‑10 dBm), and a differential 50 Ω input impedance, allowing direct connection to differential filters or balun‑based single‑ended sources. The device operates from a single 5 V supply with typical quiescent current of 50 mA and includes a power‑down mode drawing only 20 µA.
Typical applications include cellular base stations, wireless LAN, satellite converters, SONET/SDH radio links, and RF instrumentation. The mixer provides separate differential LO, IF, and RF ports, and its pinout and interface schematics are detailed for easy integration on evaluation boards.
| Conversion Gain (typ) | 7 dB |
|---|---|
| Input IP3 (typ) | 16.5 dBm |
| LO Drive (typ) | -10 dBm |
| Noise Figure (typ) | 14 dB |
| Power‑Down Current (typ) | 20 µA |
| Operating Temperature Range | -40°C to +85°C |
| Package | 14‑lead TSSOP |
The AD8343 provides a typical conversion gain of 7 dB.
The mixer needs a typical LO drive of –10 dBm.
The AD8343 is rated for a maximum junction temperature of 125 °C, with an operating range of –40 °C to +85 °C.
