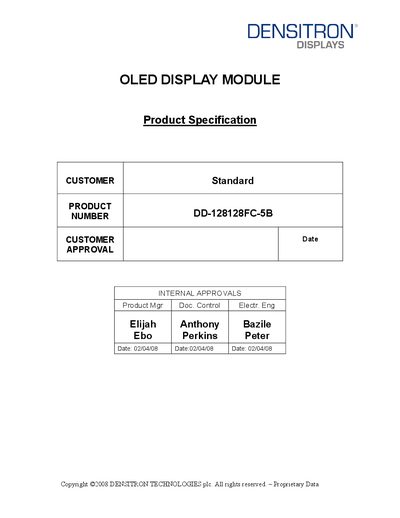

This document is about the product specification of DENSITRON TECHNOLOGIES plc's OLED display module. The document describes the main features, mechanical specification, electrical specification, optical specification, functional specification, packaging specification, quality assurance specification, reliability specification, and handling precautions of the product.
The DD-128128FC-5B is a 1.5‑inch passive‑matrix OLED display with a 128 × 128 RGB pixel format. It offers 262,144 colors, a compact size (33.8 × 34.0 × 1.60 mm), and a lightweight design (3.85 g). The module is driven by an SSD1355 driver IC and operates within a temperature range of –30 °C to +70 °C.
The document provides full mechanical and electrical specifications, including absolute maximum ratings, typical operating currents, and timing characteristics. It also outlines reliability testing, lifetime expectations (over 10,000 h), and detailed handling precautions to protect the OLED surface and prevent static damage.
