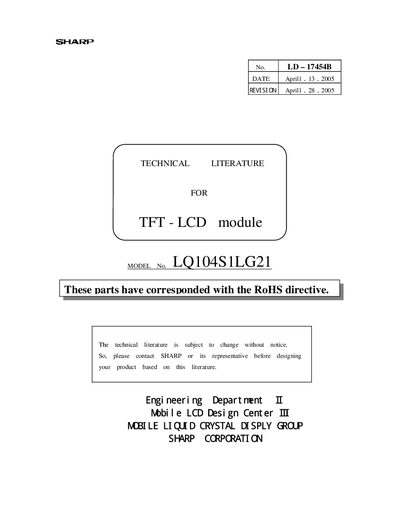

This document is a technical literature for color TFT-LCD module, LQ104S1LG21
This document describes the Sharp LQ104S1LG21 color active‑matrix TFT‑LCD module. It includes the module construction, LVDS interface, backlight connections, and recommended operating conditions. The module offers an 800 × 600 pixel display with 262,144 colors and a 10.4‑inch diagonal.
Key information such as outline specifications, electrical characteristics, absolute maximum ratings, and connector pin assignments are provided for designers. The literature also contains revision records, mechanical drawings, and packaging details.
| Display size | 10.4" diagonal (26 cm) |
|---|---|
| Resolution | 800 × 600 pixels |
| Number of colors | 262,144 colors |
| Pixel pitch | 0.264 mm × 0.264 mm |
| Supply voltage for panel | +3.3 V DC |
| Operating temperature range | -10 °C to +65 °C |
The module provides an 800 × 600 pixel display.
The panel is driven with a +3.3 V DC supply.
The module is rated for ambient temperatures from –10 °C to +65 °C.
It can display up to 262,144 colors.
