This document is the user manual for Hitachi LMG7520RPFC or LMG7525RPFF LCD module, which includes the detailed specification, usage method and precautions of the module.

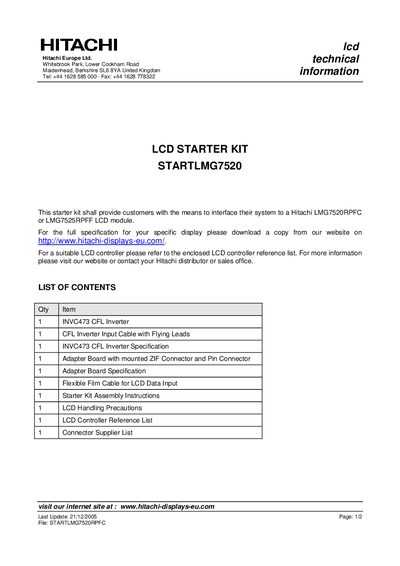

The Hitachi STARTLMG7520 LCD Starter Kit supplies the necessary hardware to interface a system with Hitachi LMG7520RPFC or LMG7525RPFF LCD modules. The kit includes a CFL inverter, inverter input cable, adapter board with ZIF and pin connectors, a flexible film cable, handling precautions, and reference lists.
Assembly instructions detail how to connect the display module, inverter, and adapter board, emphasizing the correct power‑up sequence and warning against powering the inverter without the CFL connected. High voltages may be present when the inverter board is powered, so caution is required.
Use the correct power‑up sequence, never apply power to the inverter board without the CFL connected (to avoid inverter fuse failure), and be aware that the inverter board can generate high voltages when powered.
