This starter kit provides customers with the means to interface their system to a Hitachi SX14Q001, SX14Q001-ZZA, SX14Q004 or SX14Q004-ZZA LCD module.
The STARTSX14Q001 LCD Starter Kit supplies all necessary hardware to connect a system to Hitachi SX14Q001, X14Q001‑ZZA, SX14Q004 or SX14Q004‑ZZA LCD modules. Included items are a CFL inverter, input cable, adapter board with ZIF connector, assembly instructions, handling precautions, controller reference list, and connector supplier list.
The guide details the assembly process: attach the display module connector to the inverter, connect the input cable, insert the flexible film cable into the ZIF connector, and wire the pin connector according to the display specification. Important safety notes warn to use the correct power‑up sequence, never power the inverter without the CFL attached, and to handle the high voltages generated during power‑up with care.
| CFL Inverter Model | INVC667 |
|---|---|
| Compatible LCD Modules | SX14Q001, X14Q001‑ZZA, SX14Q004, SX14Q004‑ZZA |

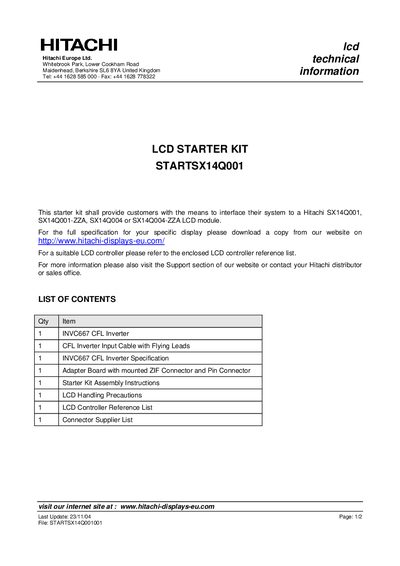

The kit includes one INVC667 CFL Inverter, one CFL Inverter Input Cable with Flying Leads, one INVC667 CFL Inverter Specification, one Adapter Board with mounted ZIF Connector and Pin Connector, Starter Kit Assembly Instructions, LCD Handling Precautions, LCD Controller Reference List, and a Connector Supplier List.
