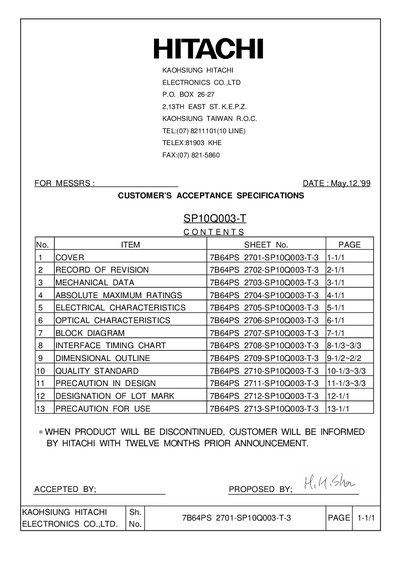

This is a customer acceptance specification, which includes product cover, record revision, mechanical data, absolute maximum ratings, electrical characteristics, optical characteristics, block diagram, interface timing chart, dimensional outline, quality standard, design precautions, batch number marking, and use precautions
This handbook provides the customer‑acceptance specifications for the Hitachi SP10Q003‑T LCD module, including mechanical dimensions, electrical ratings, optical performance, and handling precautions. It is intended for designers and integrators who need detailed data for product development and verification.
Key data include a 240 × 320 dot matrix, 70.1 mm × 92.1 mm × 9.0 mm maximum module size, operating temperature from 0 °C to 50 °C, and power supply requirements of 3.3 V (logic) and 26 V (LCD driver). The document also lists environmental limits, contrast ratio, and backlight specifications.
| Module size (max) | 70.1 mm × 92.1 mm × 9.0 mm |
|---|---|
| Effective display area | 60.6 mm × 79.8 mm |
| Dot size | 0.225 mm × 0.225 mm |
| Dot pitch | 0.24 mm × 0.24 mm |
| Resolution | 240 × 320 dots |
| Backlight LED color | White |
| Power supply voltage (logic) | 2.7 V – 4.7 V (typical 3.3 V) |
| Power supply voltage (LCD driver) | 26.0 V – 33.0 V (typical 26.0 V) |
| LED backlight voltage | 3.6 V |
| LED backlight current | 55 mA – 70 mA |
| Ambient temperature range (storage) | -20 °C – 60 °C |
The module measures up to 70.1 mm wide, 92.1 mm high and 9.0 mm deep.
The display has a resolution of 240 × 320 dots.
