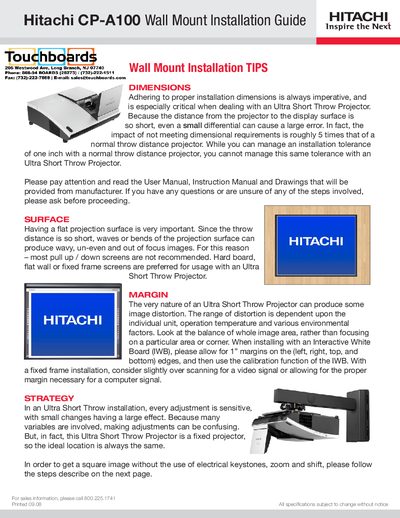

This is a wall mount installation guide for the Hitachi CP-A100 Ultra Short Throw Projector.
The guide explains the critical dimensions, surface requirements, and margin guidelines needed for a successful wall‑mount installation of the Hitachi CP‑A100 ultra short throw projector. It stresses the importance of a flat projection surface and proper margins to avoid image distortion.
Step‑by‑step instructions cover preparation, keystone adjustments, horizontal and vertical positioning, and image size tuning. Warm‑up time, margin allowances, and calibration tips are provided to ensure a clear, undistorted image.
| Warm‑up time | 30 minutes |
|---|---|
| Recommended image margin | 1 inch (or 0.5 inch) |
Warm up the projector for 30 minutes before making any adjustments.
Allow a 1‑inch margin on all edges, or leave a half‑inch margin as recommended.
