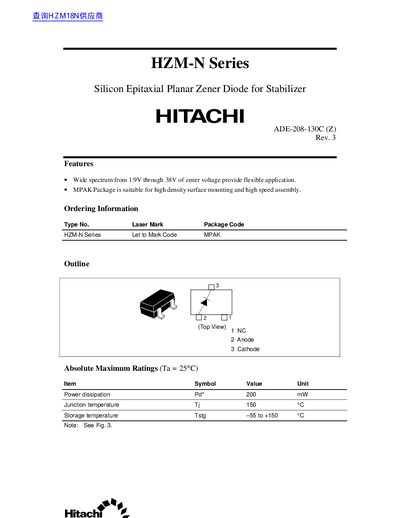

The HZM-N series is a silicon epitaxial planar zener diode for stabilizer. It features a wide spectrum of zener voltage from 1.9V through 38V for flexible applications. The MPAK package is suitable for high density surface mounting and high speed assembly.
The HZM-N series offers a wide spectrum of zener voltages from 1.9 V through 38 V, making them suitable for flexible stabilizer applications. The devices are supplied in an MPAK package that supports high‑density surface mounting and fast assembly.
Key specifications include a maximum power dissipation of 200 mW, a junction temperature rating of 150 °C, and a storage temperature range of –55 °C to +150 °C. Detailed electrical characteristics for each voltage grade are listed, along with marking codes and package dimensions.
| Power dissipation | 200 mW |
|---|---|
| Junction temperature (Tj) | 150 °C |
| Storage temperature (Tstg) | -55 °C to +150 °C |
| Package type | MPAK surface‑mount |
| Zener voltage range | 1.9 V to 38 V |
| Package dimensions | 25 mm × 62 mm × 7.6 mm |
| Weight | 0.011 g |
The maximum power dissipation is 200 mW.
They are supplied in an MPAK surface‑mount package.
The diodes can be stored from –55 °C up to +150 °C.
The series covers zener voltages from 1.9 V to 38 V.
