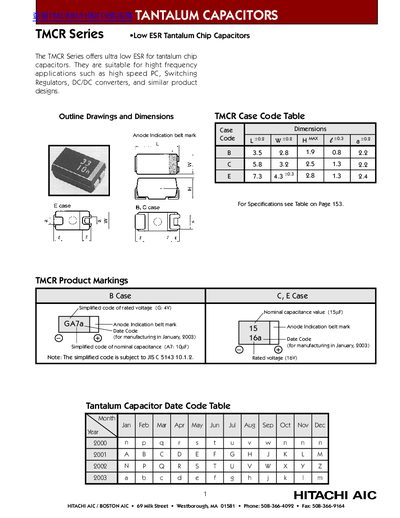

This datasheet provides detailed information on AIC / BOSTON TMCR series low ESR tantalum chip capacitors, including rated voltage, rated capacitance, dimensions, ESR, etc.
The TMCR Series offers ultra‑low ESR tantalum chip capacitors for high‑frequency applications such as switching regulators and DC/DC converters. The series includes a range of capacitance values and case sizes, each identified by a specific part number.
The document lists detailed specifications for each part, including capacitance, ESR, dimensions, and quantity per reel. It also provides case code tables, marking conventions, and a date‑code reference for manufacturing identification.
| Case dimensions (B case) | 35 × 28 × 19 mm |
|---|---|
| Case dimensions (C case) | 58 × 32 × 25 mm |
