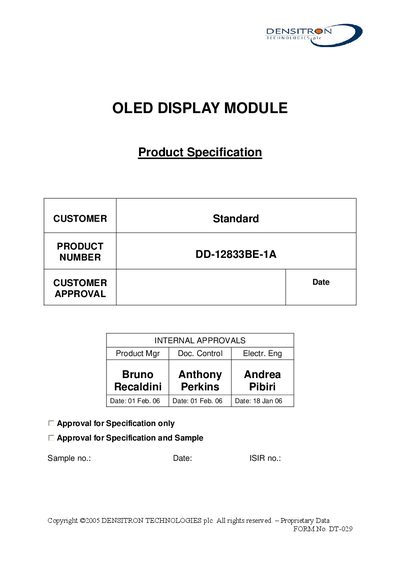

This document is the specification of OLED DISPLAY MODULE product. It introduces the main features and characteristics of the product in detail, including mechanical, electrical, optical, functional, packaging and labeling, quality assurance, reliability, and handling precautions.
The DD-12833BE-1A is a blue‑monochrome passive‑matrix OLED display module with a 128 × 33 dot format and a 2.23‑inch screen. It features a compact size (62.30 × 22.60 × 2.20 mm), low weight (5.7 g), and operates from –20 °C to 70 °C.
The document lists full mechanical, electrical, and optical specifications, pin assignments, reliability test results, handling precautions, and packaging guidelines for designers and integrators.
| Display Format | 128 x 33 dots |
|---|---|
| Overall Dimensions | 62.30 x 22.60 x 2.20 mm |
| Weight | 5.7 g |
| Driver IC | STV8102 |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -30 °C to 80 °C |
| Power Supply Voltage (Vpp_p) | -0.3 V to 4.6 V |
| OLED Power Supply (Vpp) | -0.3 V to 22 V |
| Dot Size | 0.41 x 0.38 mm |
The module operates from –20 °C to 70 °C.
The driver IC is the STV8102.
Lightly wipe the display surface with a soft cloth soaked with isopropyl alcohol, ethyl alcohol or trichlorotrifluorothane.
