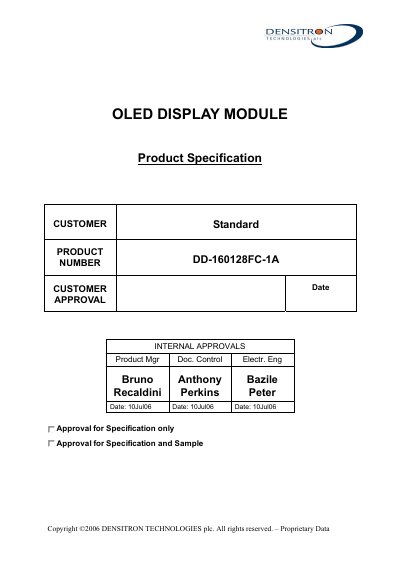

This document is the product specification of OLED DISPLAY MODULE, which describes the features and characteristics of the product in detail, including mechanical, electrical, optical, functional, packaging and labeling, quality assurance, reliability and handling precautions.
The DD-160128FC-1A is a passive‑matrix OLED display with a 160 × 128 RGB dot format. Its active area measures 28.78 × 23.024 mm, overall dimensions are 35.8 × 30.8 × 1.7 mm, and it weighs 3.6 g. The module operates from –20 °C to +70 °C and uses the SEPS525F driver IC.
Electrical specifications include a typical supply voltage of 3.3 V (range 2.6‑2.8 V) and a driver supply voltage up to 13 V. The document also provides pin assignments, timing characteristics, and handling precautions such as static‑discharge protection and cleaning guidelines. Reliability data show a lifetime of over 10 000 hours at 50 % initial brightness.
| Display Format | 160 (RGB) x 128 Dots |
|---|---|
| Overall Dimensions | 35.80 x 30.80 x 1.7 mm |
| Operating Temperature | -20 °C ~ +70 °C |
| Supply Voltage (Vpp) | Typical 3.3 V (2.6‑2.8 V range) |
| Driver IC | SEPS525F |
| Weight | 3.6 g |
The module can operate from –20 °C to +70 °C.
The typical supply voltage is 3.3 V, with a minimum of 2.6 V and a maximum of 2.8 V.
Wipe gently with a soft cloth soaked in isopropyl alcohol, ethyl alcohol, or trichlorotrifluoromethane; avoid dry or hard materials and aromatic or ketonic solvents.
The module is expected to last more than 10 000 hours at 50 % of its initial brightness under normal temperature and humidity.
