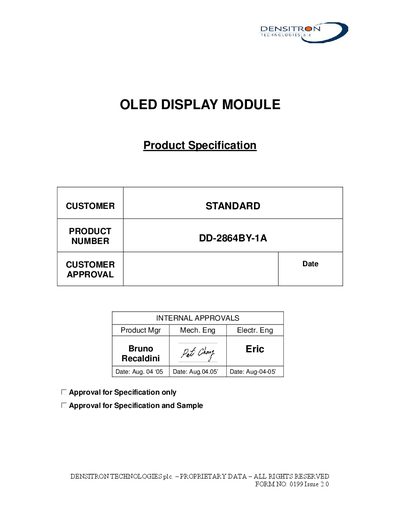

This document is a product specification for DD-2864BY-1A, which provides details of the product's features and characteristics, including mechanical, electrical, optical, functional, packaging and labelling, quality assurance, reliability, and handling precautions
The DD-2864BY-1A is a 1.02‑inch passive‑matrix OLED display module with a 128 × 64 dot resolution. It features a compact size (30 × 20.16 × 1.8 mm) and an active area of 23.02 × 11.86 mm, suitable for space‑constrained applications. The module operates from –20 °C to +70 °C and can be stored from –30 °C to +80 °C.
Electrical characteristics include a supply voltage range of –0.3 V to 4 V (Vpp) and a driver supply voltage of 0 V to 15 V (Vee). Power consumption is about 100 mW at 50 % pixel duty. The module uses an SSD1303T6 driver IC and provides a full set of interface pins for MCU connection, with detailed pin assignments and timing diagrams included.
| Display Format | 128 × 64 Dots |
|---|---|
| Overall Dimensions (W × H × T) | 30 × 20.16 × 1.8 mm |
| Active Area | 23.02 × 11.86 mm |
| Viewing Area | 25.02 × 13.86 mm |
| Display Mode | Passive Matrix (1.02″) |
| Driver IC | SSD1303T6 |
| Operating Temperature | -20 °C ~ +70 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Supply Voltage (Vpp) | -0.3 V ~ 4 V |
| Driver Supply Voltage (Vee) | 0 V ~ 15 V |
| Power Consumption | ≈ 100 mW (typ) |
| Lifetime Rating | > 10 000 hours operation |
The module can be powered with a Vpp supply voltage ranging from –0.3 V to 4 V.
Wipe the surface lightly with a soft cloth soaked in isopropyl alcohol, ethyl alcohol or trichlorotrifluoromethane, avoiding dry or hard materials and aromatic or ketonic solvents.
Store the module in a dark place at 25 °C ± 10 °C with humidity below 50 % RH.
The display is rated for more than 10 000 hours of normal operation, with end‑of‑life defined at 50 % of the initial brightness.
