LS E65B, LA E65B, LY E65B is a TOPLED® series product with the characteristics of concentrated light, high brightness and high reliability. It can be used in signal lights, backlighting, automotive interior lighting and home lighting

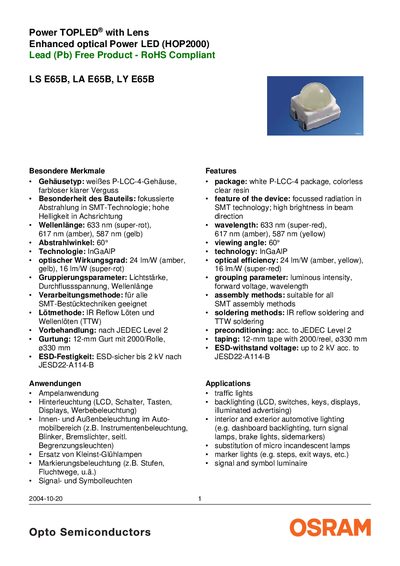

The Osram E65B series includes three LED variants (LS, LA, LY) with peak wavelengths of 633 nm (super‑red), 617 nm (amber) and 587 nm (yellow). They are supplied in a white P‑LCC‑4 package with a clear resin encapsulant and feature a 60° viewing angle and high optical efficiency (24 lm/W for amber/yellow, 16 lm/W for super‑red).\n\nThe datasheet provides ordering information, maximum ratings, and detailed characteristic tables, including forward voltage groups, brightness groups, and wavelength groups. It also lists application examples such as traffic lights, backlighting, and automotive interior/exterior lighting, and includes handling notes for ESD, soldering and storage. This manual is written in German.
| Peak wavelength (super‑red) | 633 nm |
|---|---|
| Viewing angle | 60° |
| Optical efficiency (amber/yellow) | 24 lm/W |
| Forward current (max) | 70 mA |
| Reverse voltage (max) | 12 V |
| Operating temperature range | -40 °C to +100 °C |
| Junction temperature (max) | +125 °C |
The LEDs have a viewing angle of 60°.
The maximum forward current is 70 mA at 25 °C.
Amber and yellow LEDs achieve about 24 lm/W, while the super‑red version reaches about 16 lm/W.
It operates from –40 °C up to +100 °C.
